BW-650 (Chamfering)

Eyan America | Saw Grinder, HSS
  • Chamfer1
  • Chamfer-2
Semi-Automatic Saw Blade Chamfering Machine

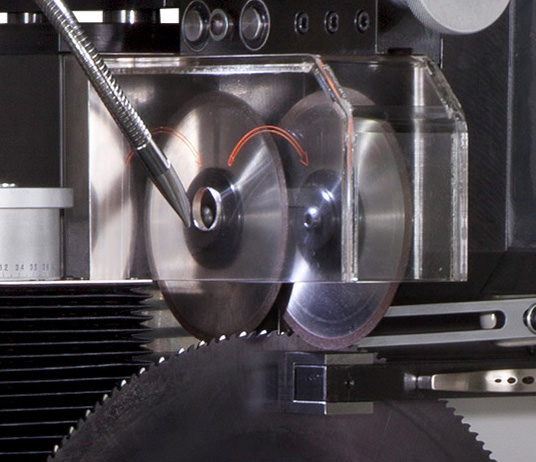

Easy setup and economical solution for chamfering HSS saw blades. Heavy duty design with cast supports and professional class construction. This machine will chamfer both sides of the blade simultaneously vis two independently adjusted grinding wheels.

Grinding Range150 ~ 650mm
Teeth PitchMax. 25mm
Saw Blade ThicknessMax. 8mm
Grinding Speed30 ~ 100 teeth /min
Grinding Wheel125 x 25mm
Grinding Motor300w
Grinding Wheel Speed6600 rpm
Gross Weight348-kgs
Specifications subject to change. Please contact us for more information.
