Dowell Surface Grinders

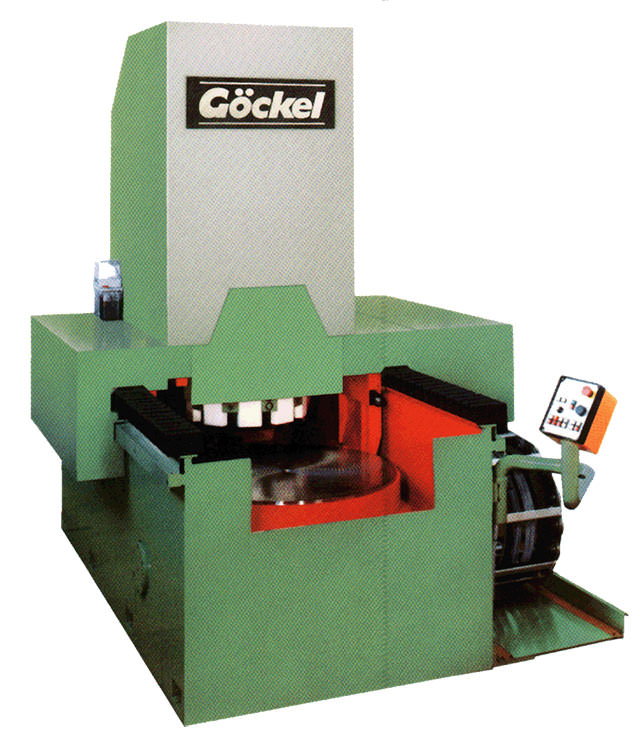

High Precision Vertica Rotary Grinders
Main castings use “MEEHANITE” Class FC30 and aged naturally through time allowing long-time-structural stability. Machine base fully supported design creating a high rigidity structure. A large spindle with water proof Siemens motor and design create stability during heavy cutting. Vertical feed using 3 high stiffness and rigidity linear roller guides providing smooth high stiffness.
Standard user friendly AND operator panel.
Main castings use “MEEHANITE” Class FC30 and aged naturally through time allowing long-time-structural stability. Machine base fully supported design creating a high rigidity structure. A large spindle with water proof Siemens motor and design create stability during heavy cutting. Vertical feed using 3 high stiffness and rigidity linear roller guides providing smooth high stiffness.
Standard user friendly AND operator panel.
| Model | VR-1000 AND | VR-1200 AND |
| Rotary Magnetic Chuck | 1000mm | 1200mm |
| Max Grinding Radius | 500mm | 600mm |
| Table to Spindle Center | 400mm | 400mm |
| Table Speed | 5 ~ 20 rpm | 5 ~ 20 rpm |
| Grinding Spindle Motor | 50-hp | 50-hp |
| Grinding Spindle RPM | 1175 rpm | 1175 rpm |
| Auto Servo Down Feed | 1.5kw | 1.5kw |
| Grinding Wheel | 150 x 50 x 25mm (8 pcs) | 510 x 50 x 203.2mm |
| Gross Weight | 14000-kg | 15500-kg |
Specifications subject to change. Please contact us for more information.
