Overview

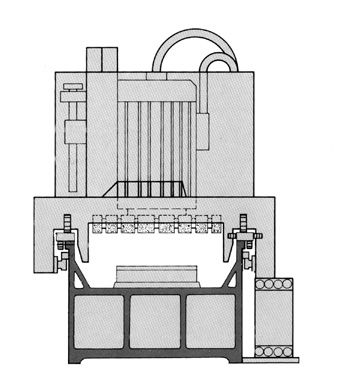

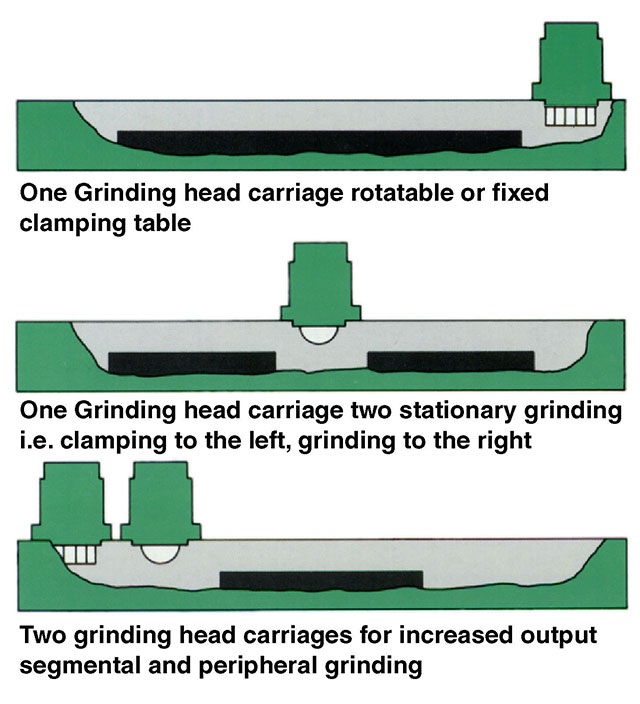

Large capacity vertical spindle longitudinal production grinding machines. Heavy duty cast supports, slide and carriage. Powerful electromagnetic work tables up to 590” long. Vertical grinding motors from 50-hp ~ 460-hp. Many options regarding work table, operator controls, spindle arrangements and work piece loading. These machines are built to your requirements.
| Model | G80 | G100 | G130 | G150 |
| Grinding Length | 1700 ~ 15000mm | 1700 ~ 15000mm | 1700 ~ 15000mm | 1700 ~ 15000mm |
| Grinding Width | 550mm | 700mm | 1000mm | 1200mm |
| Grinding Height | 200 / 400mm | 250 / 500mm | 200 / 500mm | 200 / 500mm |
| Grinding Motor | 40 ~ 60kW | 65 ~ 100kW | 100 ~ 350kW | 100 ~ 350kW |
| Grinding Head Dia. | 600mm | 800mm | 1100mm | 1300mm |
| Carriage Drive | 0.5 ~ 40 m/min | 0.5 ~ 40 m/min | 0.5 ~ 40 m/min | 0.5 ~ 40 m/min |
| Table Type | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic |
Specifications subject to change. Please contact us for more information.
