Gockel Grinding Supplies
Overview
The benchmark of the Göckel machine line that is found in service shops and maintenance departments worldwide. Fabricated to the highest standards of German engineering and to your budget with smart features to meet your production demands. 15-hp grinding spindle, 6” wide electromagnetic worktable built to your required length, heavy duty cast support and carriage along with upgrades and options to meet your requirements.

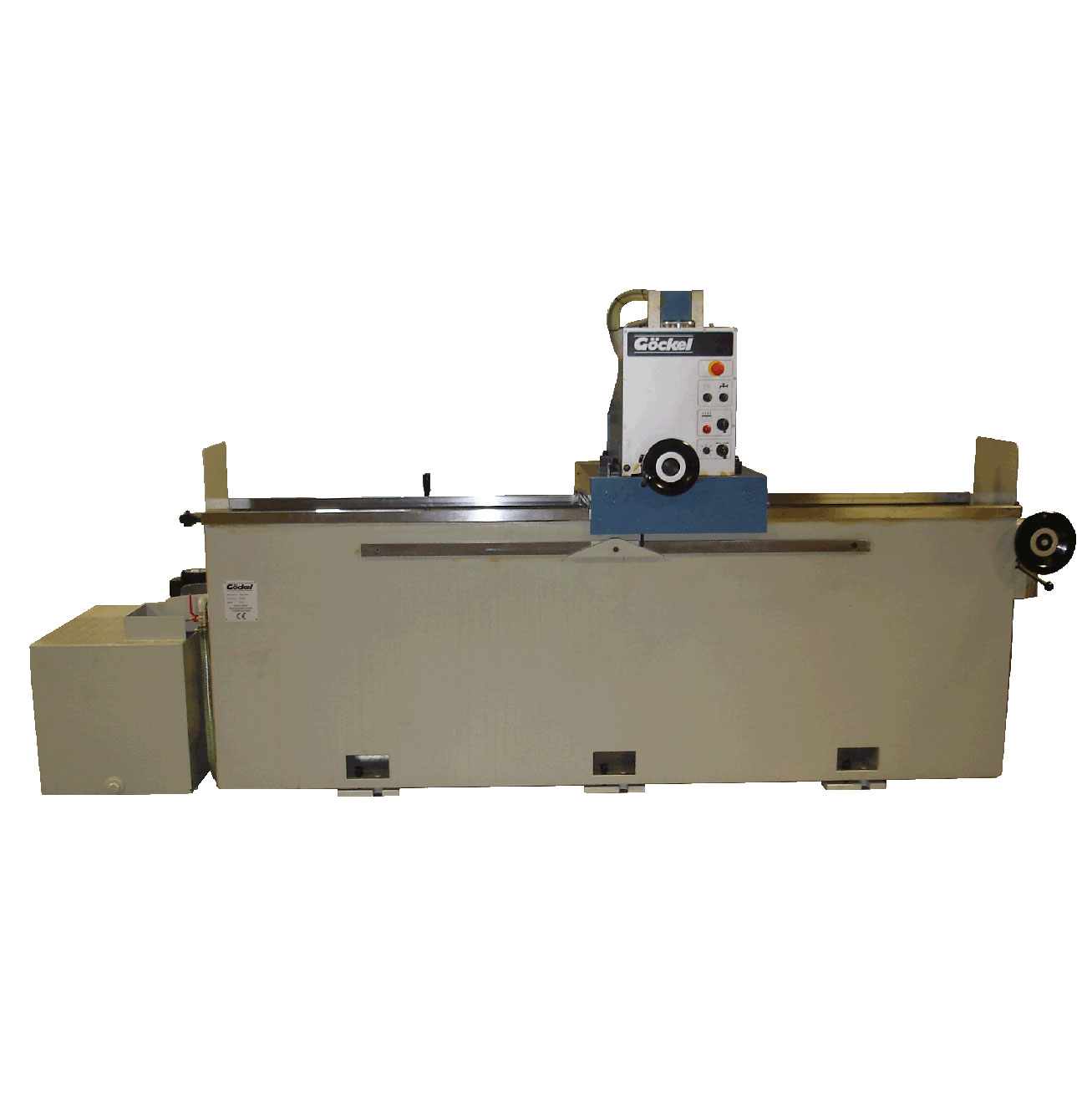

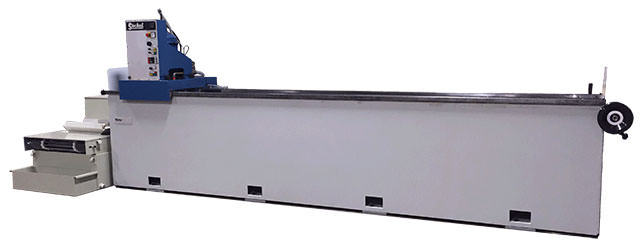

| Model | G50RSel | G50el | G50elT |
| Grinding Length | 1 ~ 7m | 1 ~ 7m | 1 ~ 7m |
| Grinding Width | 225mm | 225mm | 225mm |
| Grinding Height | 120/140mm | 120/140mm | 120/140mm |
| Grinding Motor | 5 ~ 15hp, 1750-rpm | 5 ~ 15hp, 1750-rpm | 5 ~ 15hp, 1750-rpm |
| Grinding Wheel | Max. 250mm | Max. 250mm | Max. 250mm |
| Carriage Drive | 3 ~ 25 m/min | 0.02 ~ 30 m/min | 0.02 ~ 30 m/min |
| Table Type | Electromagnetic | Electromagnetic | Electromagnetic |
| Table Width | 155 / 200mm | 155 / 200mm | 155 / 200mm |
| Table Rotation | 360 degrees | 360 degrees | 360 degrees |
| Coolant Pump | 63-lpm | 63-lpm + 100-lpm | 63-lpm + 100-lpm |
Specifications subject to change. Please contact us for more information.
