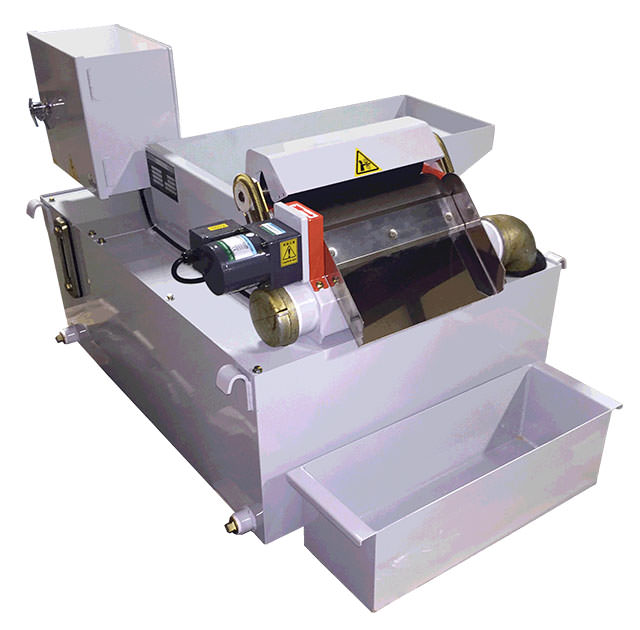

Paper Filter Mag Flyer
Heavy duty magnetic separators built for longevity and reliability.
Easily adjusted rubber roll presses coolant from the chips before scraped from the drum and discharged into the chip collector. The drum and scraper are constructed from all stainless steel materials and demagnetized at the scraper point.
Readily available from our inventory in either single or three phase.
Easily adjusted rubber roll presses coolant from the chips before scraped from the drum and discharged into the chip collector. The drum and scraper are constructed from all stainless steel materials and demagnetized at the scraper point.
Readily available from our inventory in either single or three phase.
| Model | MK1-30 | MK1-40 | MK1-60 | MK1-80 | MK1-100 |
| Flow Rate | 30-lpm (7-gpm) | 40-lpm (10-gpm) | 60-lpm (16-gpm) | 80-lpm (21-gpm) | 100-lpm (26-gpm) |
| Inlet Height | 79mm | 79mm | 97mm | 97mm | 105mm |
| Inlet PT | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" |
| Magnetic Roll Width | 190mm | 190mm | 225mm | 260mm | 295mm |
| Stock # | 715-0230F0030 | 715-0230F0040 | 715-0230F0060 | 715-0230F0080 | 715-0230F0100 |
Specifications subject to change. Please contact us for more information.
